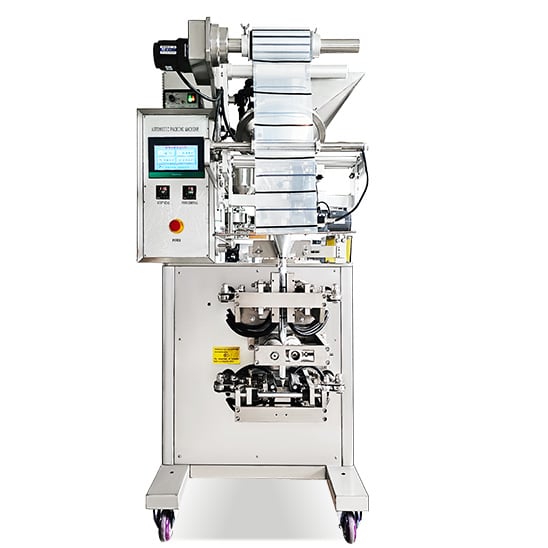

POWDER PACKING MACHINE

Our powder packaging machine streamlines powder – to – bag packing in three steps: bag forming, filling, and sealing. It uses a screw – type metering system. The rotating screw precisely conveys powder into formed bags, ensuring accurate filling and minimizing waste.​
This machine finds wide applications. In the food industry, it’s ideal for packing items like flour, sugar, and powdered seasonings. In pharmaceuticals, it can handle medicinal powders. Also, in the chemical sector, it’s suitable for packaging various industrial powders. With its reliable performance, it offers a comprehensive solution for powder packaging, enhancing productivity across these industries.

Key Features

 Bag length,packing volume, speed , & etc data &adjustment can be displayed on the screen.The usercan directly operate it on it.

 • It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batchnumber.

Technical Specifications:

Machine Specifications Combined Table
Model HXL-F100 HXL-F300 SJIII-F100 SJIII-F300
Bag-making length 40-160mm 50-300mm 40-150mm 50-300mm
Bag-making width 30-120mm 50-400mm 30-120mm 50-400mm
Bag-making style 3 Side seal、4 Side seal、back seal back seal 3 Side seal、4 Side seal、back seal back seal
Bag capacity 5-100ml 100-500ml 5-100ml 100-500ml
Packing speed 30-50bags/min 20-40bags/min 30-50bags/min 20-40bags/min
Power 2.6kw 2.6kw 1.6kw 1.8kw
Dimension 80*100*180cm 100*120*220cm 80*100*180cm 100*120*220cm
Weight 400KG 580KG 300KG 480KG
Air power 0.6Mpa 0.65Mpa
Air Consumption 100L/min 100L/min

* Specifications are subject to change without notice, All rights are reserved.
